Assignment 3
More advanced beginner CAD work and practice sketching in two-point perspective and in invention brainstorming
SP3

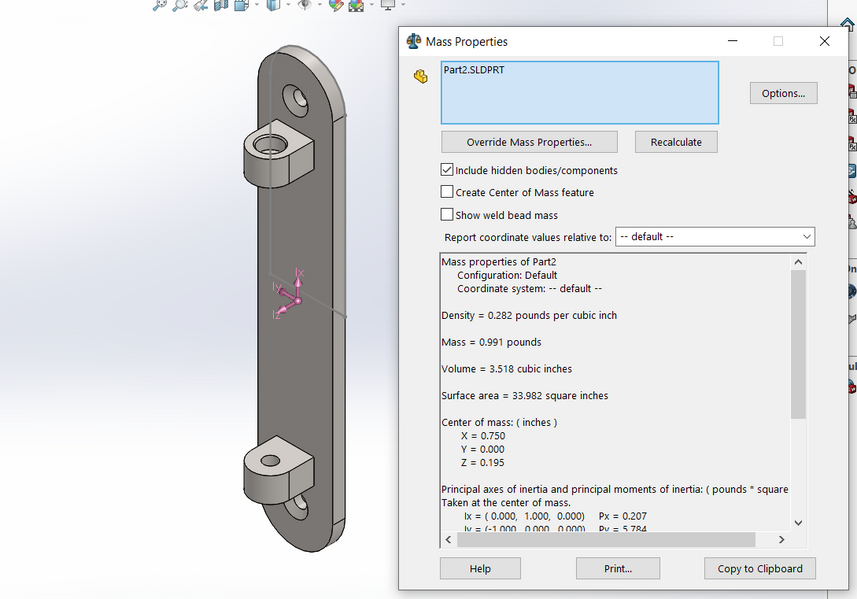

Modeled a Mounting Block and Bracket using new tools like the cut extrude and hole wizard
SOLIDPROFESSOR ASSIGNMENT
I3
INVENTION
Who am I interviewing?
My dad
What is his ideal invention?
He needs an invention that alerts him to when a commercial ends or is about to end so that he can come back in time
Why this invention?
He hates it when he does something away from the TV during commercial and the show or game has started before he’s gotten back
Why choose this project?
He loves to watch sports, movies, and shows on the TV and hates when he misses anything
Why does he leave in the first place?
He finds the commercials boring, he is hungry, or he needs to use the bathroom so he gets up to leave.
Can’t he just watch the show on a tablet or phone?
He dislikes using tablets to watch anything and prefers a real TV. Doesn’t want to carry one around either
Why not just have someone tell him to come back?
Sports and retro movies are not everyone’s favorite
S3
Four sketches all in two-point perspective. Two are conversion sketches from isometric view and two are sketches created from scratch in 2PP
SKETCHING
